Detailed introduction：

产品描述：
SATA NANDrive™嵌入式闪存固态硬盘产品采用小尺寸多芯片封装，集成了一个串行ATA控制器，和一片或多片NAND闪存。SATA NANDrive所有容量产品拥有相同的引脚设计并向下兼容，简化了系统电路板的设计。采用内置微控制器和闪存文件管理固件代替主机端FFS文件系统和闪存设备驱动软件。SATA NANDrive产品具备串行ATA硬盘驱动器功能，以及出众的性能和数据完整性及可靠性。小尺寸BGA封装设计更易于安装到系统主板，从而节省空间和成本。SATA NANDrive与大多主流芯片组兼容，数据存储安全、使用寿命长、高效节能。

Product Description:

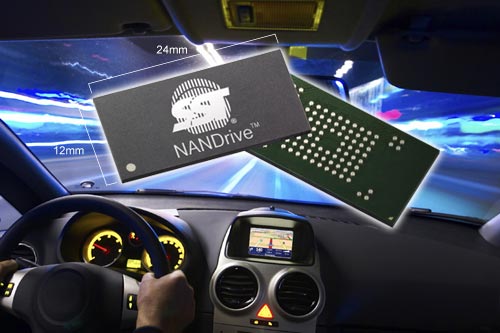

SATA NANDrive™ Embedded Flash SSD products come in a small multi-chip package that integrates a serial ATA controller, and one or more slices of NAND flash. SATA NANDrive all capacity products have the same pin design and are downward compatible, simplifying system circuit board design. Host side FFS file system and flash device driver software are replaced by built-in microcontroller and flash file management firmware. SATA NANDrive products offer serial ATA hard disk drive capabilities, as well as superior performance and data integrity and reliability. The small size BGA package design is easier to install to the system motherboard, thus saving space and cost. SATA NANDrive is compatible with most mainstream chipsets, ensuring safe data storage, long service life, and high energy efficiency.

Product Description: SATA NANDrive™ Embedded Flash SSD products come in a small multi-chip package that integrates a serial ATA controller, SATA Nandrive ™ Embedded Flash SSD products come in a small multi-chip package that integrates a serial ATA Controller, and one or more slices of NAND flash. SATA NANDrive all capacity products have the same pin design and are downward  compatible,  simplifying system circuit board design. Host side FFS file system and flash device driver software are replaced by  built-in microcontroller and flash file management firmware. SATA NANDrive products offer serial ATA hard disk drive  capabilities,  as well as superior performance and data integrity and reliability. The small size BGA package design is easier to  install to the system motherboard,  thus saving space and cost. SATA NANDrive is compatible with most mainstream chipsets, ensuring safe data storage,  long service life, and high energy efficiency.

Main features:

Small size SATA solid state drive

-14 x 24 x 1.95mm 145-ball BGA package

Industry standard serial ATA bus interface

- SATA 1.5 Gbit/sec, SATA 3.0 Gbit/sec

- ATA/ATAPI-8 standard

- Supports 48-bit address instruction set

Energy saving

- 3.3V and 1.2V low power supplies

- Operating mode: As low as 360mW

- Sleep mode: 70mW typical value

Use multitasking to improve performance

- Fast, continuous read performance (flash to host),

Up to 110 MB/sec

- Fast, continuous write performance (host to flash),

Up to 60 MB/sec

Powerful firmware prewrite function

- Adopt comprehensive advanced loss balancing technology to achieve product longevity

Life maximization

- Configurable algorithm durability and data retention are achieved

optimal

- Using embedded flash file system, no need to change the host

Machine software, to achieve smooth product upgrade

Powerful power failure protection function

- Protect data from damage when power is interrupted or unstable

Bad block management

- Replace bad blocks in time before uncorrectable errors occur

Built-in ECC

- Adopt advanced hardware engine correction technology

Advanced data security protection

- Adopt user optional protected areas and safe erase/self-destruct

Increase data security

SSD lifetime monitoring

- Enable the alert function of the S.M.A.R.T. command

Residual life cycle

- Depending on the usage pattern of the specific application,

Estimate the ideal SSD capacity

Multiple packages with the same capacity

- 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 G

- 1mm large ball pitch allows for the use of lower cost PCS

Commercial and industrial temperatures

- Commercial temperature: 0°C to +70°C

- Industrial temperature: -40°C to +85°C

application

-- Tablet/smart book/Internet

- Set-top box/network set-top box

-- A TV with Internet access

-- Industrial PC

- single board computer

Industrial automation and control

-- Testing and measuring instruments

- Blade Server

- Gateway/switch

- Firewall

- Video surveillance

- Black box data recorder

- Video conference

- GPS and telematics

- Vehicle infotainment system

-- Multifunctional printer
